SmartOne C vessel tracker operates with line-powered , battery or both for

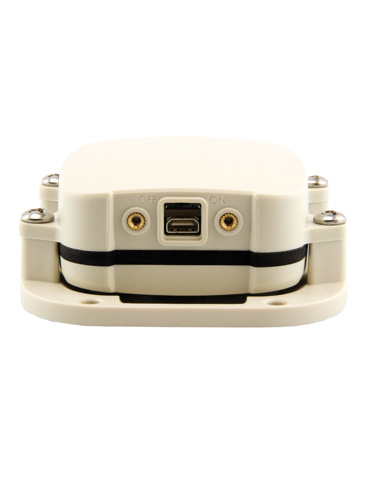

The Globalstar SmartOne C Vessel Tracker provides operating efficiency and security for a multitude of assets, including intermediate bulk containers, vehicles and boats. The SmartOne C can be used to monitor motion sensors, comparative GPS positions and custom configured sensors to gather and transmit asset status information. Each device is configured to track its asset’s specific needs and provide intermediate and emergency alerts by email or text via monitoring.IOT user interface.

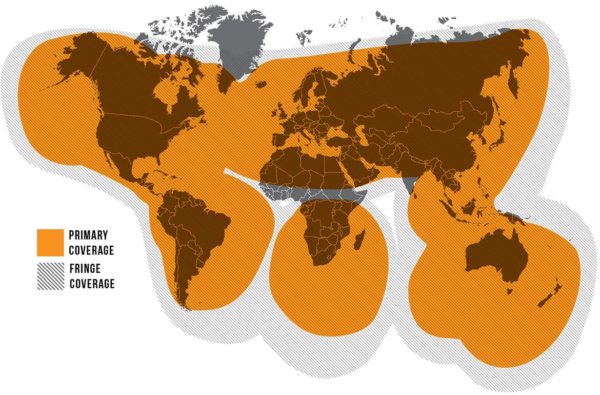

SmartOne Satellite Coverage Map
Operating Specifications
KEY FEATURES
-
- Quick installation: Use industrial adhesives, brackets or screw mounts for installation
- Operates on 5v external line power, 8-22v regulator cable, or (4) AAA Lithium batteries
- Automatic alerts: Change of location sensing sends alerts if asset moves outside of pre-determined range
- Messaging reduction mode: Reduced satellite messaging if asset remains in same location for a pre-determined period of time
- Hardware on/off feature: Allows the unit to initiate GPS re-centering functionality
- Accepts serial signals (TTL) from external inputs
** Some of the features are not part of standard delivery.
DIMENSIONS
2.7 x 3.25 x 1in (6.86 x 8.26 x 2.54cm) with brackets
WEIGHT
3.6 oz (102g) with 4 batteries and mounting hardware
OPERATING TEMPERATURE
-22 to 140°F (-30 to 60°C)
NOTE: The unit shall remain operational over the -40 to 185°F (-40 to 85°C) range, though may experience battery life and RF signal degradation.
LINE POWER
5V DC or 8-22V DC with regulator cable
BATTERY TYPE
4 AAA 1.5V lithium (provides 1.5+ years of life)
CERTIFICATIONS
ANATEL Certification for Brazil (pending), FCC CFR Parts 15 and 25, Industry Canada, CE Mark (European Certification) and COFETEL (pending)
STANDARDS
SAE J1455 MIL STD 810, NEMA 4X/IP68, RoHS Compliant
SATELLITE TECHNOLOGY
Global LEO Satellite operation using the Globalstar Simplex Data Network
